ข้อมูลทางเทคนิค
ข้อมูลจำเพาะของ Electromagnetic Flowmeter รุ่น DH1000 Series
| Size (mm.) | DN15 – DN1000 |
| Medium | Conductive liquid, slurry |
| Conductivity | > 5μS/cm |
| Accuracy | 0.3%, 0.5% |
| Operating Pressure | 0.25, 0.6, 1.0, 1.6,4.0 Mpa, (or specified by customer) |
| Display | Displaying Flow, totalizer and the velocity of flow with back light |
| Signal Output | Analog 4-20 mA, isolated, Loading resistant < 750 Ω Pulse frequency 0-1 KHz Photo electricity isolated OCT, External power < 35 VDC, 250 mA/max |
| Operating Power | Single Alternating Current 85-265 VAC, 45-63 Hz, Power <20W, 24VDC, 10VA |
| Converter Type | Integrated, Remote, Inserted/Flange, Clamp |
| Protection Grade | IP65/IP67/IP68 |
| Explosion-Proof Grade | ExdBT4/ExibCT4 มาตรฐานกันระเบิด |
| Velocity | 0.3-12 m/s (0.1-15 m/s as required) |
| Lining | Chloroprene Gum Polyurethane , F4, Fulororesin -46 F46, PFA with steel stainless net, Hard rubber, Neoprene, PTFE |
| Flowing direction | Forward, Reverse |
| Repeatability | ±0.1%, ±0.15%, ±0.25% |
| Electrode material | 316L, Ot, Ta, Ti, HB, HC |
| Electrode type | Standard, blade, removable |
ข้อมูลวัสดุ
Flowtube Linear
ความเข้ากันได้ของวัสดุท่อที่สัมผัสของไหล
- PTFE – Resistant up to 120℃
- Polyurethane – not resistant
- ETFE – resistant up to 120℃
- Neoprene – not resistant
- Ryton – not resistant
Electrode Material
ความเข้ากันได้ของ Electrode
- 316 SST – corrosion rate of less than 0.020 in.per year, up to 20℃
- Hastelloy C-276 – corrosion rate of less than 0.0020 in. per year, up to 20℃
- Tantalum – corrosion rate of less than 0.020 in. per year, up to 120℃
- Platinum-10% Iridium – corrosion rate of less than 0.0020 in. per year, up to 20℃
- Titanium – corrosion rate of greater than 0.050 in. per year (not recommended)
ภาพสินค้าจริง

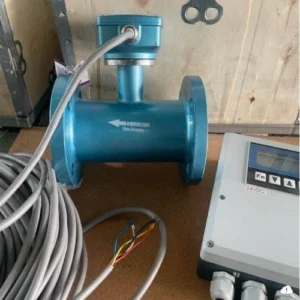

ภาพส่วนหนึ่งของ Electromagnetic Flowmeter รุ่น DH1000 Series
