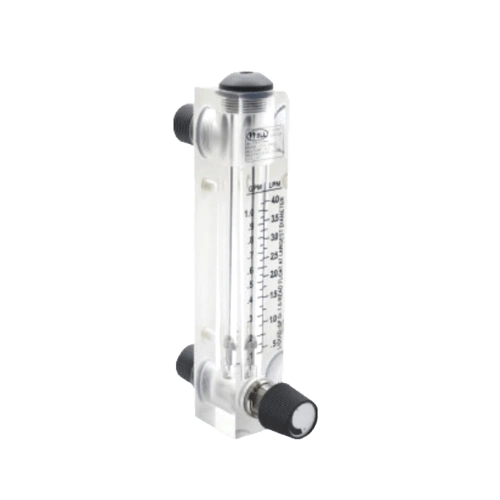

Flowmeter Model: ARM-T Series
Application
- Working Pressure : ≤ 1.0 Mpa (10 bar)
- Operating Temperature : 0 – 65 °C
- Remark : Fixed screw for center distance F is MB x 11
Material
Body : Acrylic
Float : Stainless
Connection : ABS
Technical parameter
| Model | Range (Unit) | Size | Float | ||
| GPM (Water) | LPM (Water) | m³/h (Air) | |||
| ARM-15T | 0.1 – 0.5 | 0.5 – 2 | 0.1 – 1
0.5 – 3 0.6 – 6 1 – 12 1.6 – 16 2.5 – 25 |
1/2″ BSPT | SS304 |
| 0.1 – 1 | 0.5 – 4 | ||||
| 0.2 – 2 | 1 – 8 | ||||
| 0.3 – 3 | 1 – 11 | ||||
| 0.5 – 5 | 2 – 18 | ||||
| ARM-25T | 1 – 10 | 5 – 35 | 2.5 – 25
6 – 60 10 – 100 25 – 250 |
1″ BSPT | |
| 2 – 20 | 10 – 70 | ||||
| 5 – 30 | 20 – 110 | ||||
| 15 – 35 | 50 – 130 | ||||
| 5 – 40 | 10 -150 | ||||
Gallery for ARM-Series
